How to replace the main HDMI cable?

Depending on the amount and type of use, cables and their connections will always wear down over time so should be considered consumables.

The most common issues are caused by the HDMI cable and HDMI extender as they were never designed for constant movement or twisting etc. Complete replacement camera cable looms, with HDMI and USB cables included, can be ordered here: unlimitedirl.com/cables

Alternatively, you can buy standalone cables on Amazon or other online reseller if you want to manually replace only one cable in your setup.

In general, it's always a good idea to at least carry spare HDMI cables when travelling.

For replacing the main cable loom, follow these steps

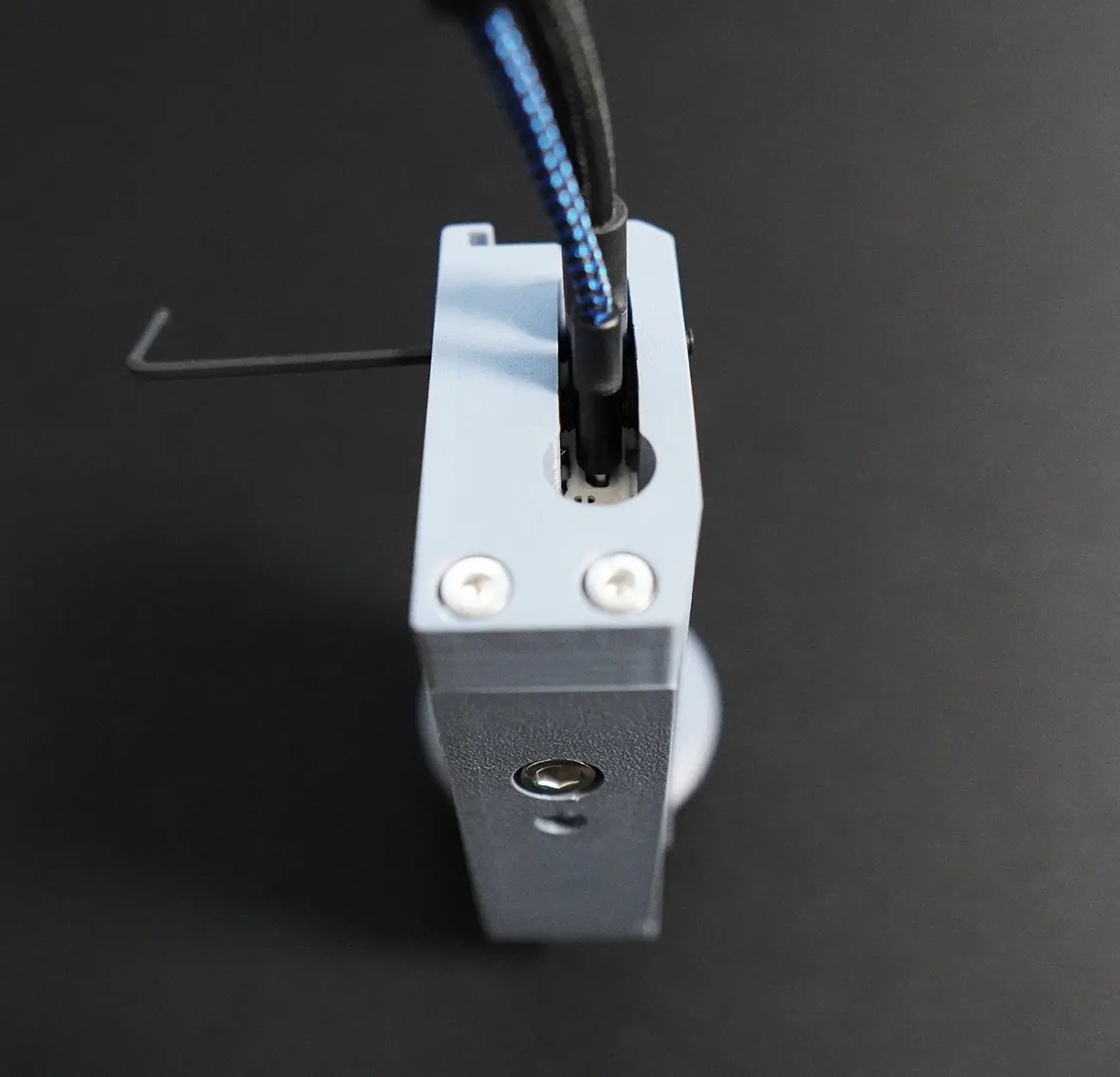

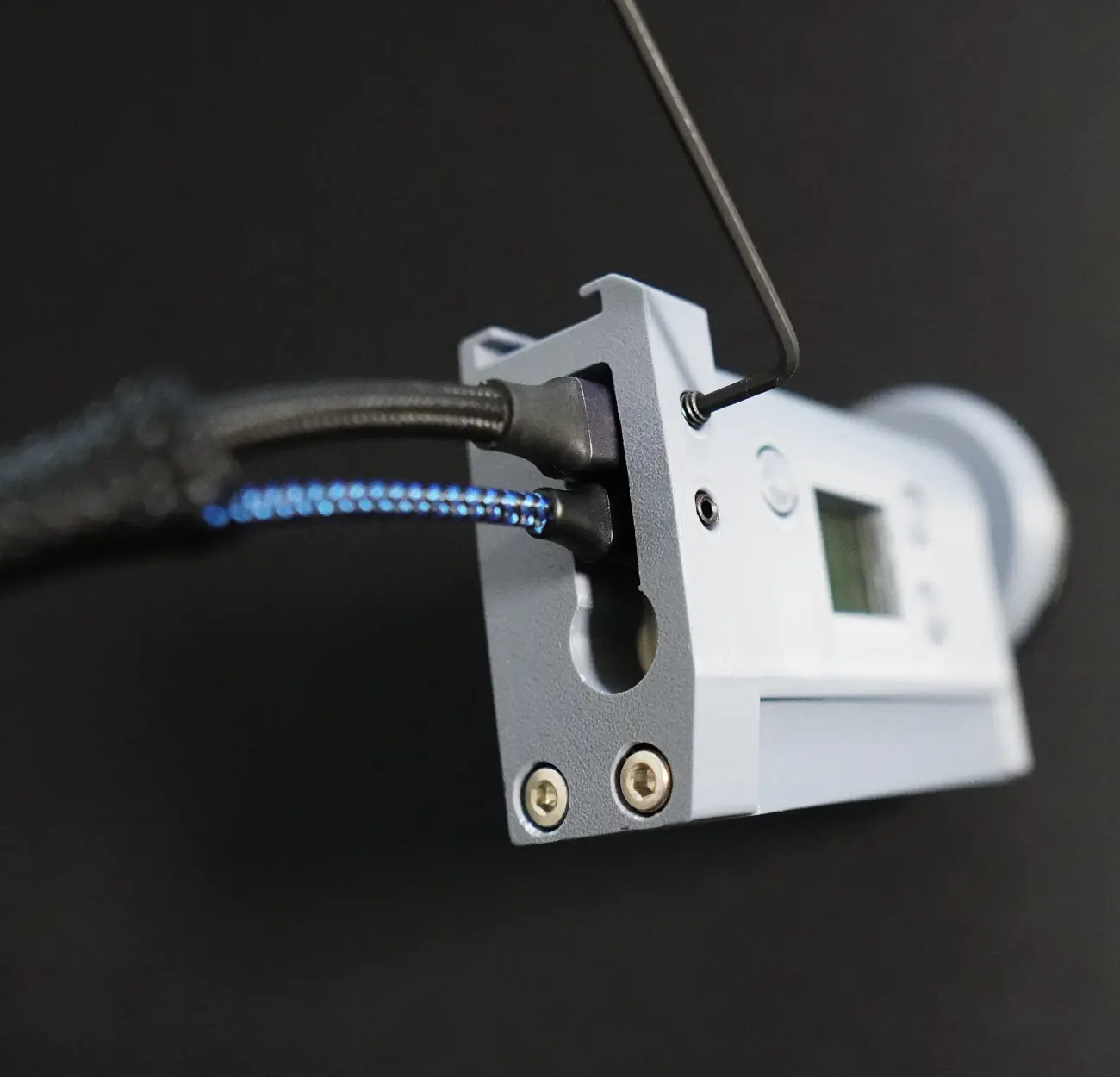

Unplug the loom cables from the camera. If you're using a CamSaver, first use the smallest included Hex Key to loosen the cable clamp screws.

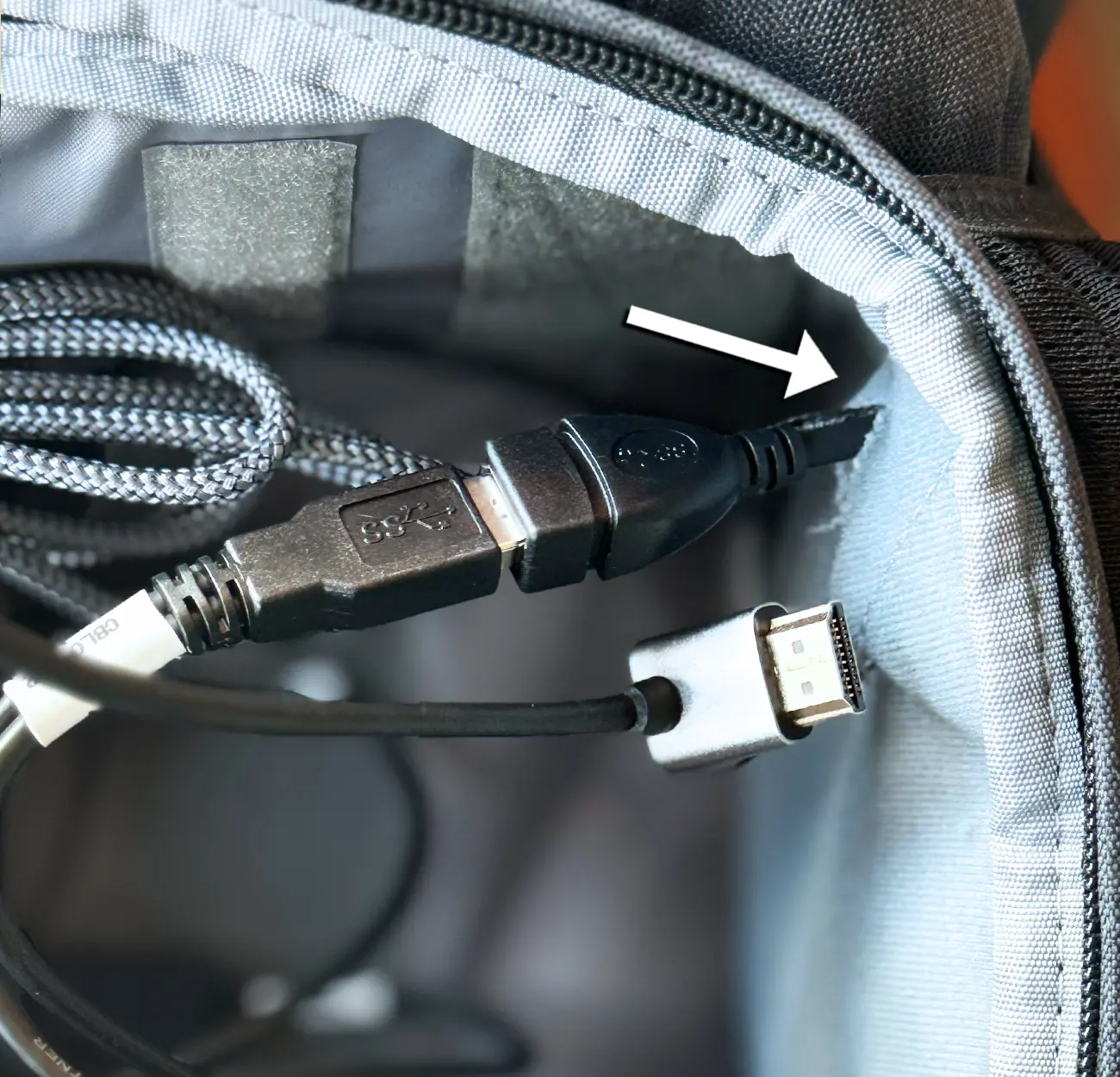

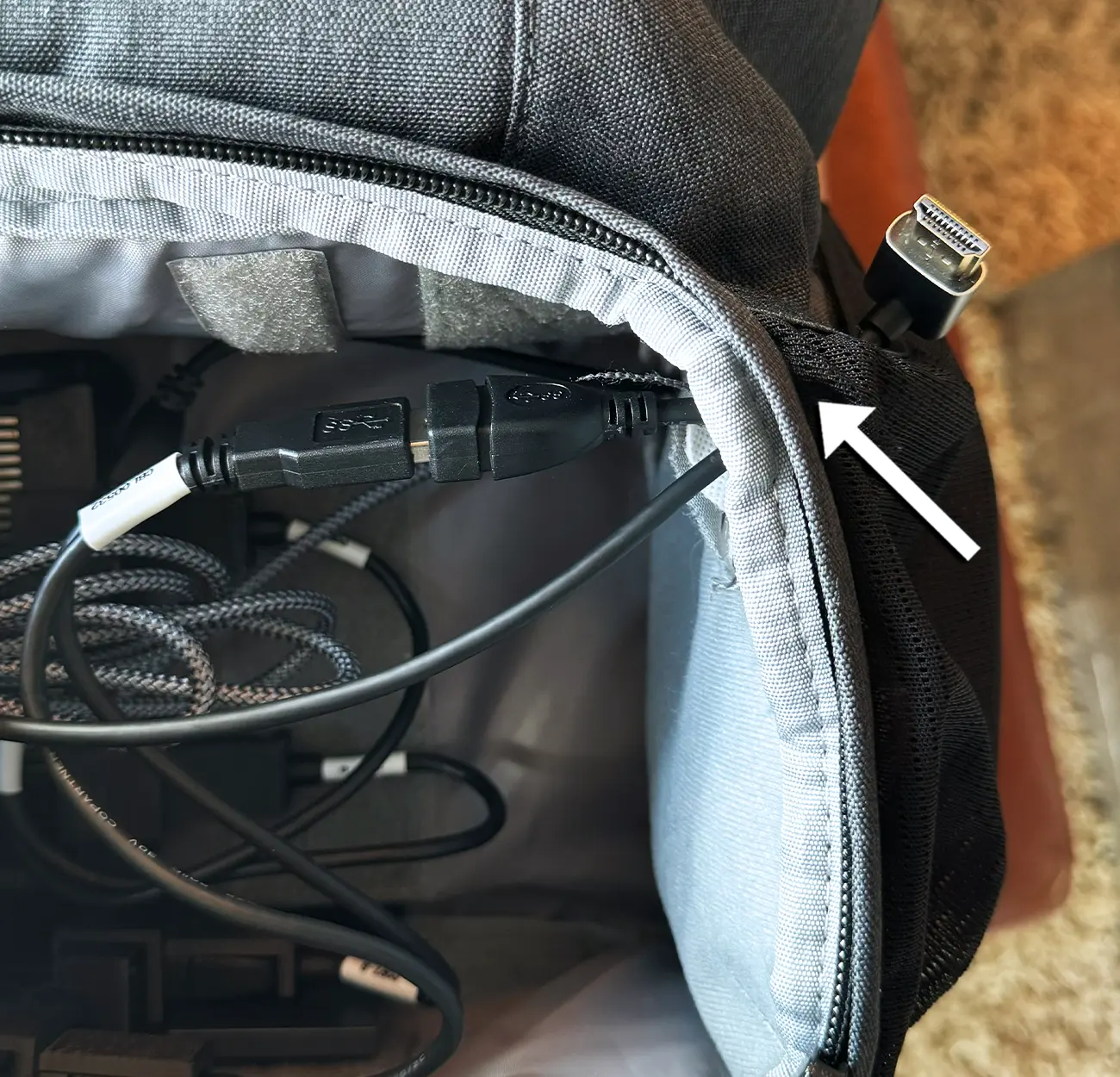

Unplug the USB loom cable from the extender located in the lower compartment of the IRL Backpack.

Unplug the HDMI loom cable from the LiveU Solo PRO located in the side pocket of the IRL Backpack.

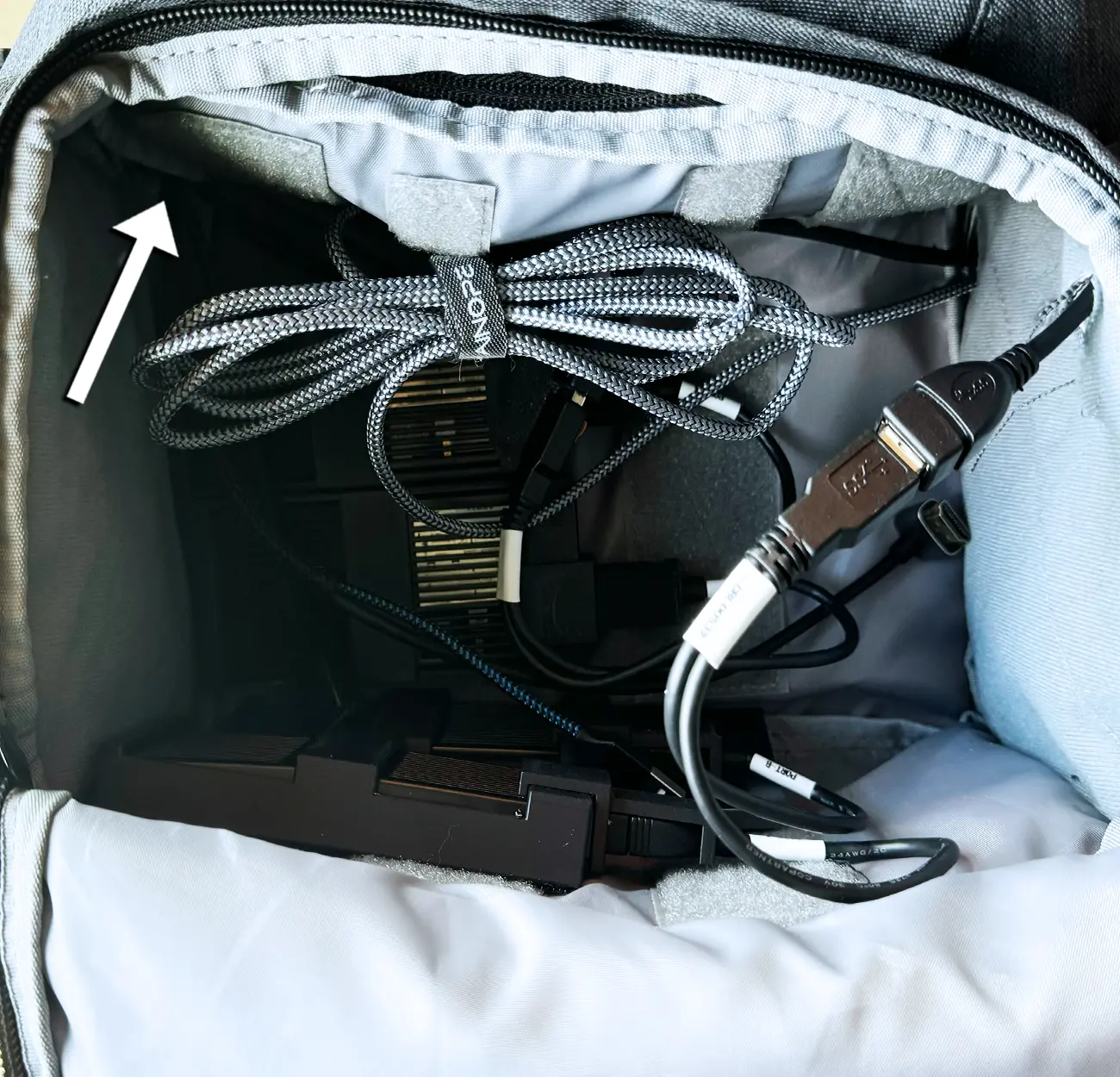

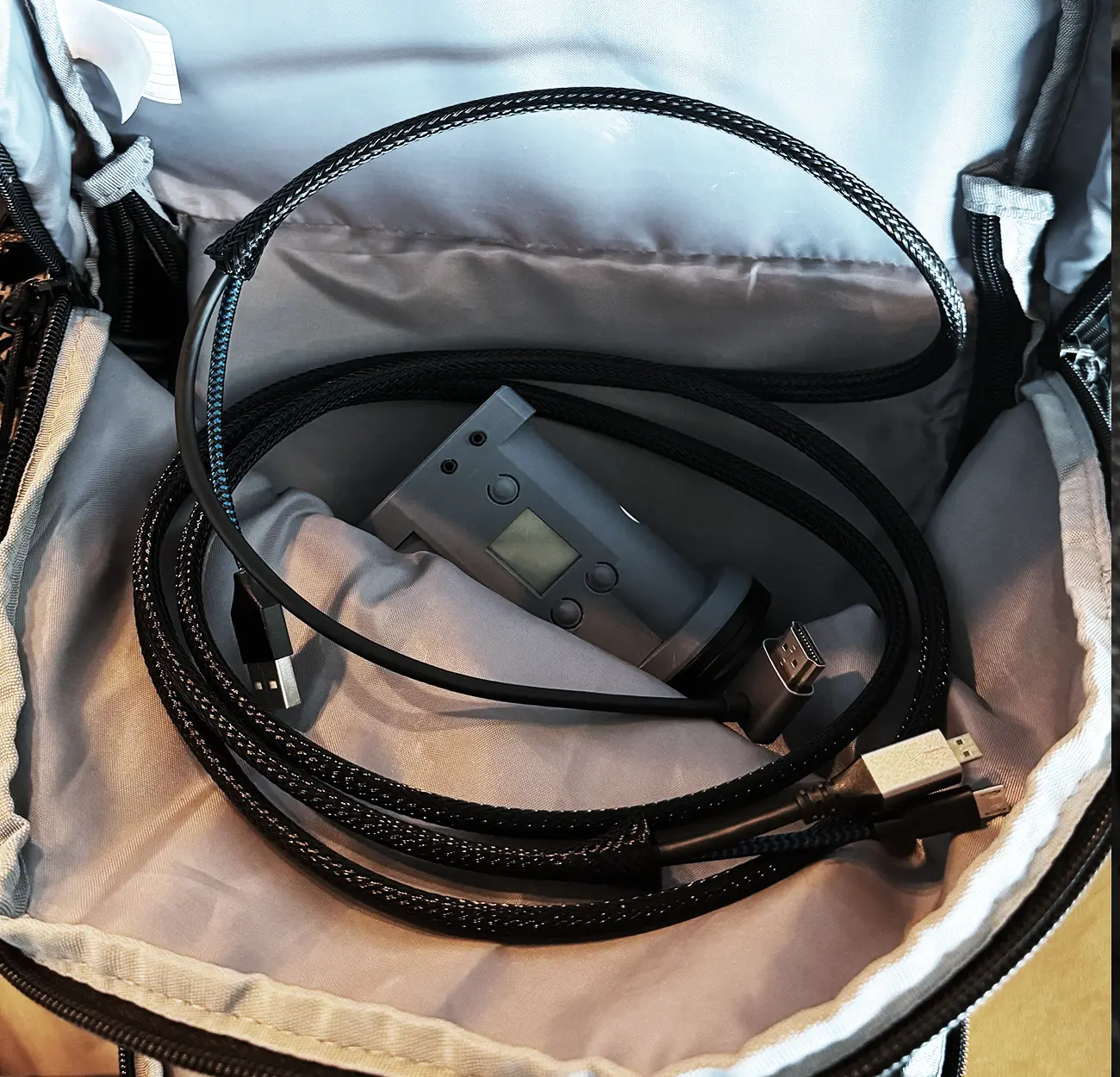

Pull the cable loom out of the backpack while taking visual notice of how the loom is routed internally.

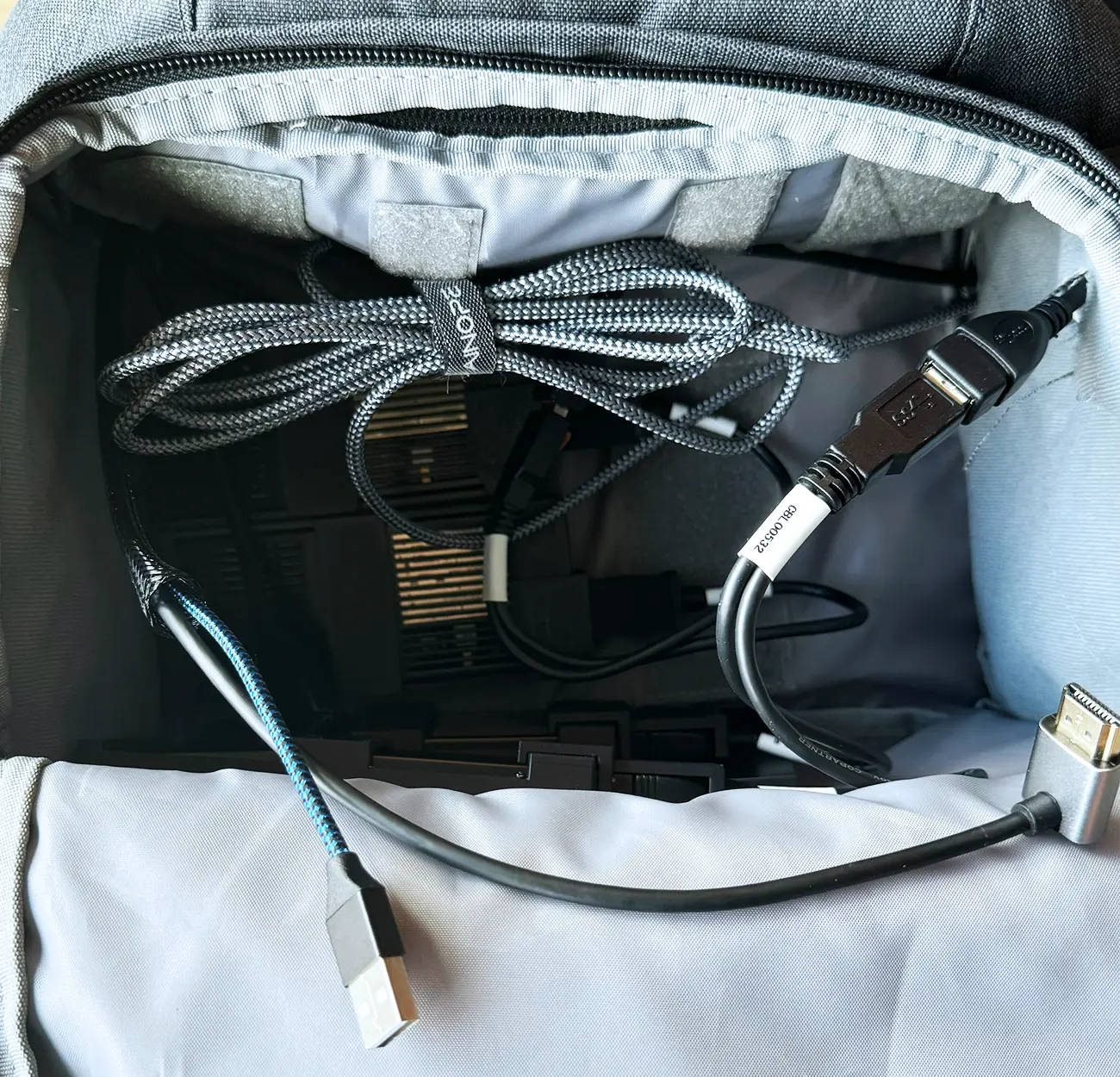

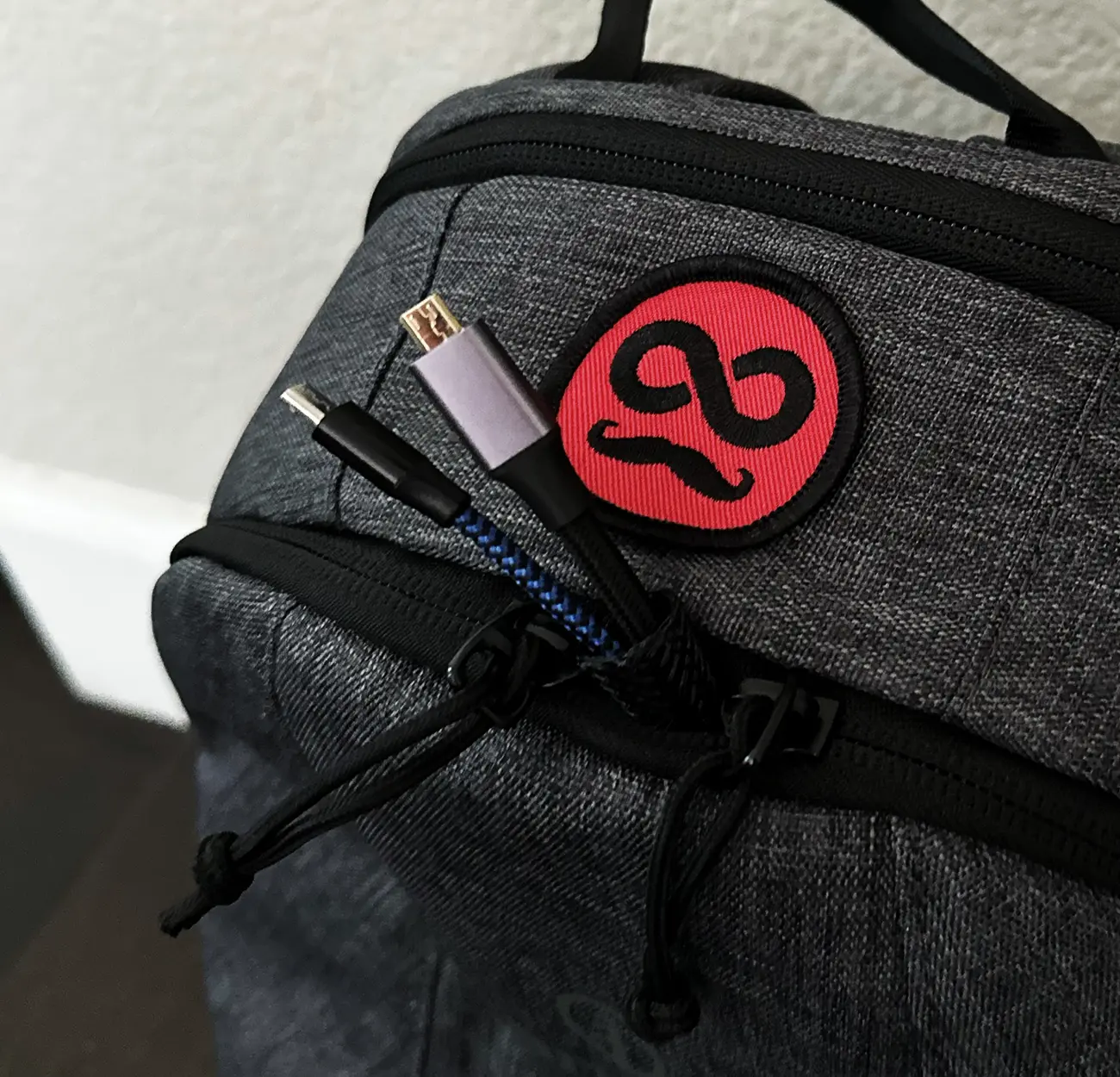

Thread the new cable loom through the same openings of the backpack.

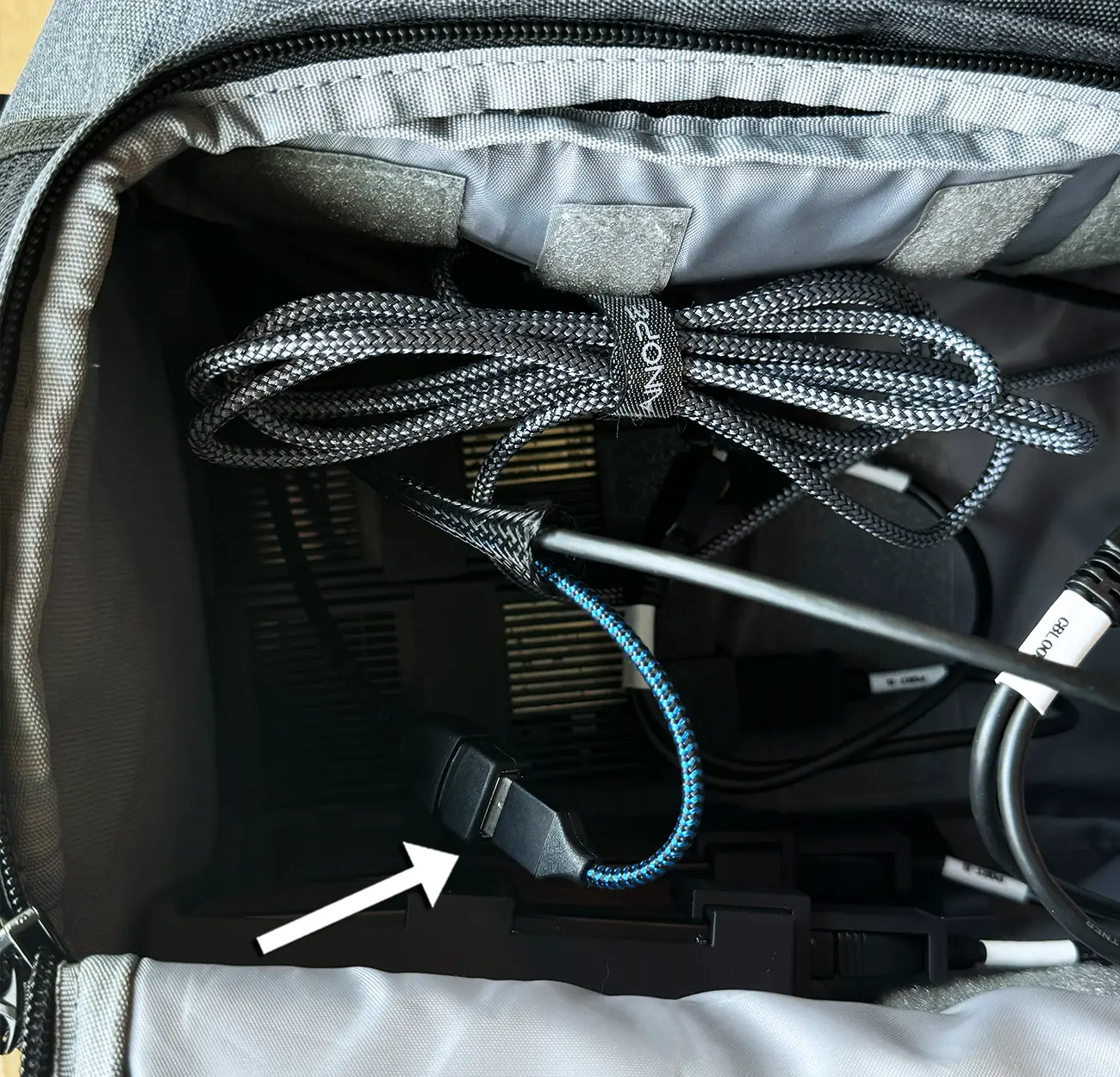

Connect the new USB loom cable to the same extender cable located in the lower compartment of the IRL Backpack.

Connect the new HDMI loom cable to the LiveU Solo PRO located in the side pocket of the IRL Backpack.

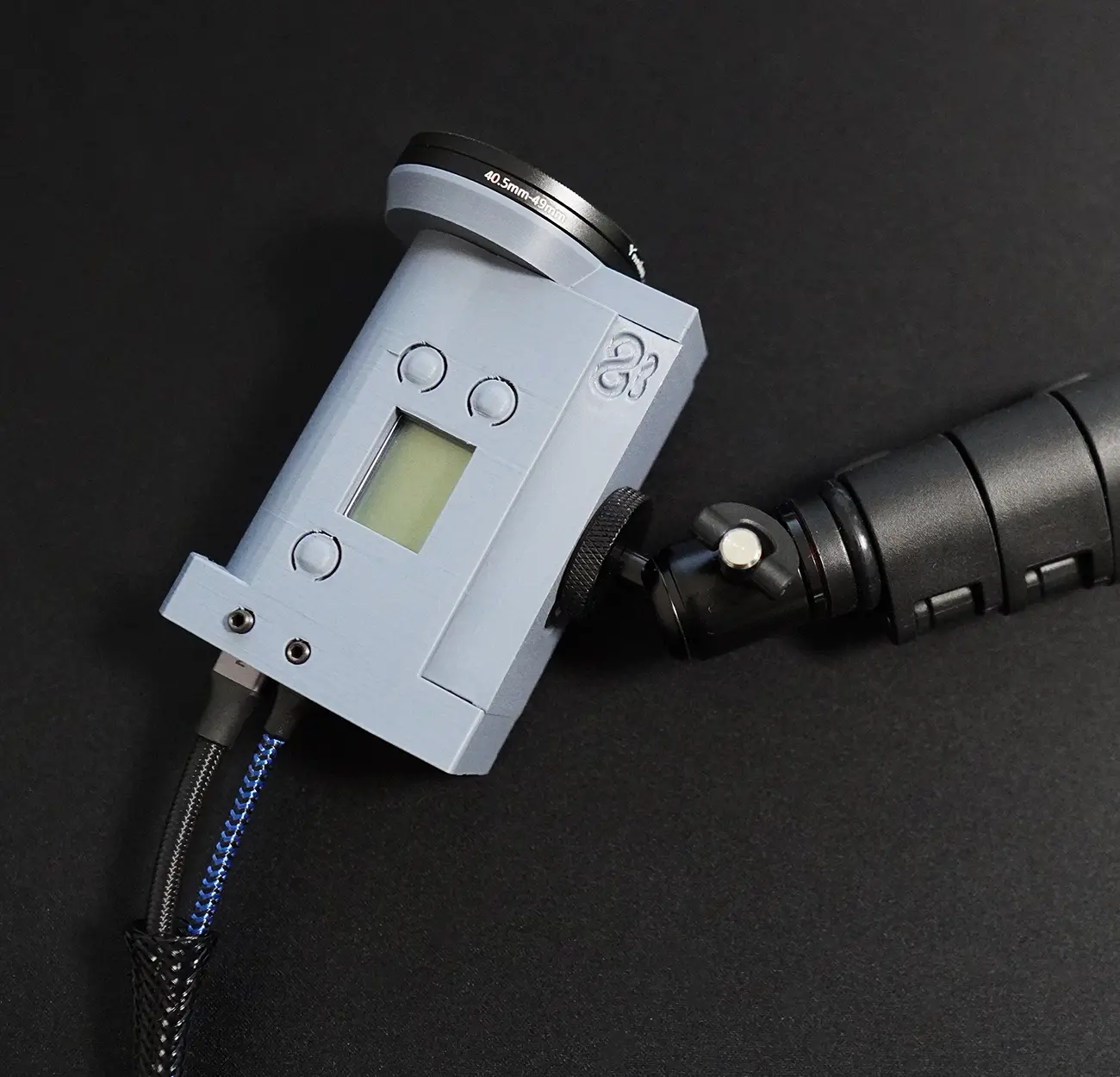

Connect the new loom cables to the camera.

If you’re still experiencing issues, please contact us via support@unlimitedirl.com and @UnlimitedIRL on X, or join The IRL Discord for help from the community.
